A button within arm's reach
The extended Call Button on the cord is laid next to the patient or resident, so help can be called without reaching for the wall.
Integrated call & cancel · extended button on a cord
B-SW-G33 Call & Cancel with Cord
Put the call button where the patient is. The B-SW-G33 combines Call and Cancel in one wall unit, with an extended Call Button on a cord that sits right next to the person who needs it.
- Frequency
- 433.95 MHz
- Warranty
- 2 Years
Help is no use if the button is out of reach
Patients and residents who are not mobile cannot get up to reach a button mounted on the wall — and a call that cannot be made is a call for help that never happens.
Fitting a separate Call Button and Cancel Button at every bed adds devices, cost and installation work — when one unit could do both jobs.
One wall unit. Two functions. A button within reach.

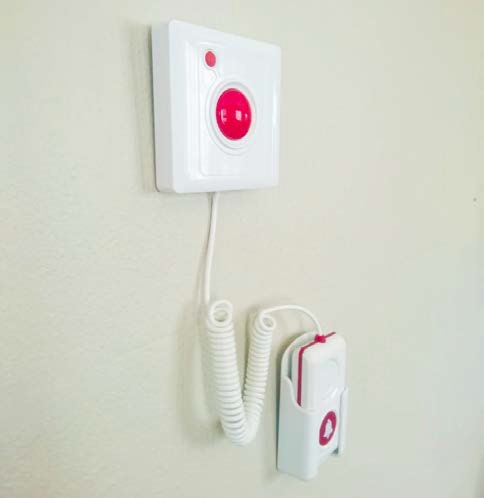

Mount the B-SW-G33 on the wall and lay the extended Call Button on its cord next to the patient or resident — about 60cm coiled and up to 1.5 metres when extended. The large red Call Button raises the call, and the Cancel function on the same unit clears it. To the receivers, it counts as a single device.
CALLCANCEL
A call that is always within reach — and always identified
Call and Cancel in one device
No separate Cancel Button to install or keep track of — the Call and Cancel functions live on the same wall unit.
Mount the unit, position the button
Mount the main unit on any flat surface with two screws or double-sided tape, then position the extended button exactly where it is needed.
One device on the system
When programmed to receivers, the Call and Cancel functions count as a single device — simpler programming and fewer slots used.
A simple response flow
The extended Call Button is pressed
The button laid next to the patient or resident sends its call to the receivers wirelessly over 433.95 MHz.
The receivers show the call
Because of the unique code, the receivers identify exactly which Call function was activated — and the call stays up until it is cancelled.
The call is cancelled
The Cancel function on the same wall unit clears the call — no separate Cancel Button needed.
Where the B-SW-G33 is used
The B-SW-G33 is most popularly used in hospitals for patient beds, and in retirement and frail care units where the patients are not mobile and require a button to be laid on the bed with them — the extended Call Button sits right next to the patient or resident, while the main unit stays mounted on the wall.
Features and capabilities
The detailed controls for capacity, identifying calls, mounting and powering the B-SW-G33.
Unlimited receiver capacity
The device can be programmed to an unlimited number of receivers.
Unique code
The device has a unique code/address that allows receivers to identify which Call or Cancel function was activated.
Extended Call Button
The B-SW-G33 is the BellMe Call Button that includes an extended Call Button on a cord. The cord is approximately 60cm when coiled and up to 1.5 metres when extended. The extended button can be positioned next to a patient or resident.
Mountable
The main unit can be mounted using two screws or double-sided tape. The extended button is also supplied with a mounting bracket.
Integrated Call & Cancel
The Call and Cancel functions are integrated into one device.
Counts as one device
The Call and Cancel functions are considered one device when programmed to receivers.
Battery operated
The B-SW-G33 uses one A23 battery.
Technical specifications
| Specification | Details |
|---|---|
| Frequency | 433.95 MHz |
| Dimensions | 85 × 85 × 15mm |
| Battery | 1 × A23 |
| Cord | 60cm coiled / 1.5m extended |
| Warranty | 2 Years |
Ask us about the B-SW-G33 Call & Cancel with Cord
Tell us where the product will be used and what you need the system to do. A BellMe representative will help with the right configuration.
